DR590-2CH IR

DR590-2CH IR


    • 0 USD
    • 0 USD
    • 0 USD
    Reset options

Front and Interior Full HD Protection

The DR590-2CH IR records Full HD 1080p videos of the front and interior of your car at 30 frames per second, in a 139-degree wide view angle (interior 140 degrees).
With the front camera’s Sony STARVIS™ imaging sensor, you get awesome image clarity day and night.
The interior infrared camera records clear videos even in complete darkness thanks to its discreet infrared illumination LEDs.

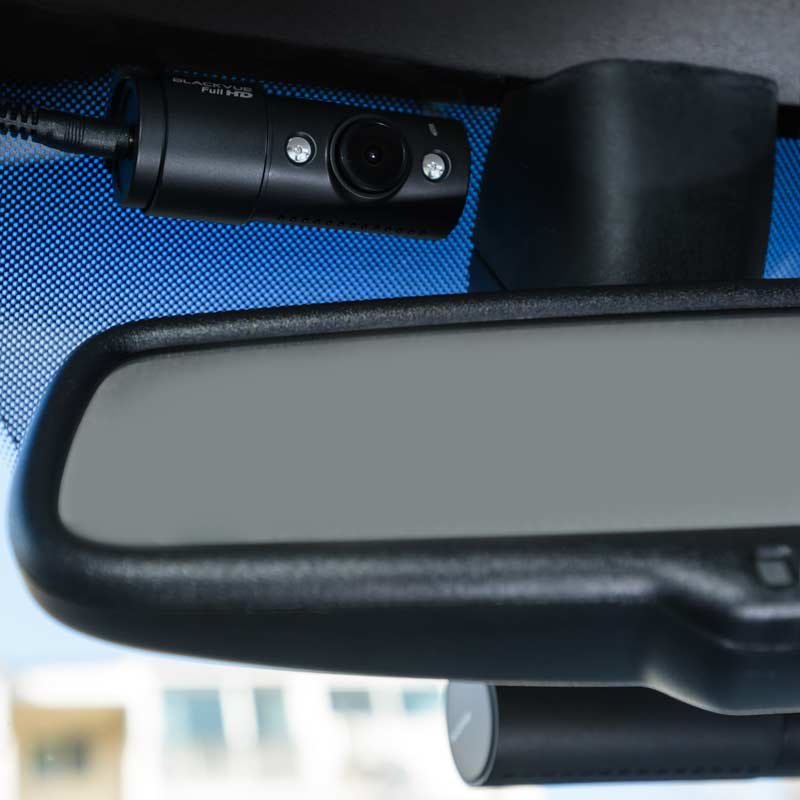

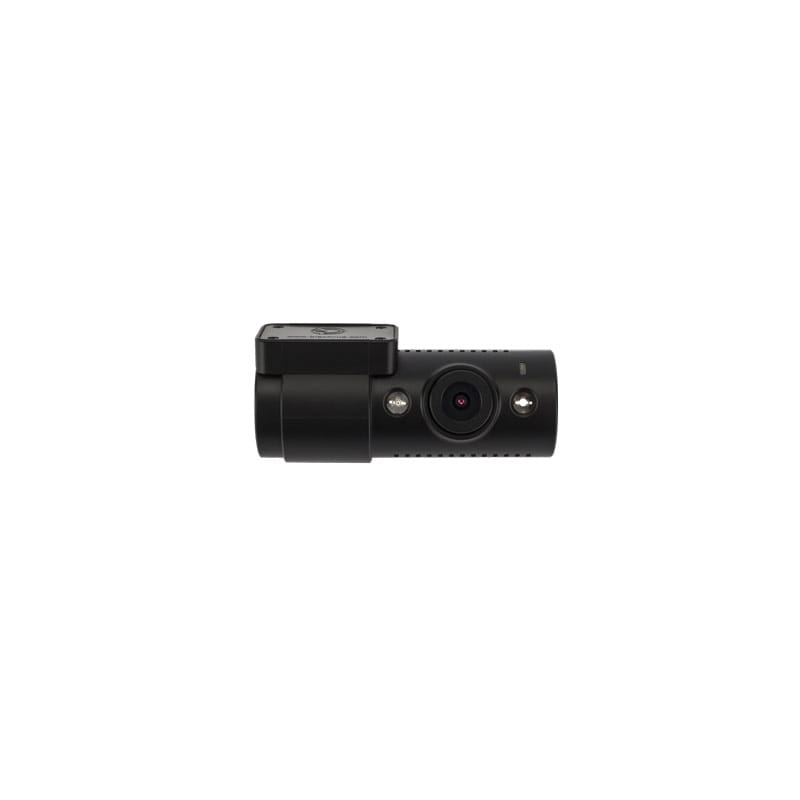

Interior Infrared Camera

The Interior IR Full HD camera is equipped with an illumination sensor and infrared LED which light is barely visible to the eye.
These allow the capture of clear images in pitch black lighting conditions.


Set up (easily) and forget

BlackVue dash​cams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape. This way, the dash​cam is invisible to the driver’s eye. The interior camera faces the driver, ideally above the rear view mirror and connects to the front unit with the included video cable.
Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on.
Once set, you can forget about it, knowing it will reliably record your drive.



Parking Mode Support

The DR590W-2CH IR is compatible with Parking Mode. In Parking Mode, your dash​cam monitors your parked vehicle, recording videos when it detects movement or impact. It also includes the few seconds before the triggering event, thanks to buffered recording. You will need a Power Magic Pro or Power Magic Battery Pack to enable this feature. Find more info about Parking Mode here (link opens in new tab).



Secure Memory Management

Loop Recording: your dash​cam records over the oldest video files first when the microSD card is full, in a seamless loop.

Adaptive Format-Free Technology: your BlackVue saves and organizes files on the microSD card in a highly efficient way.
It reduces the need for formatting the card and prevents file corruption even after multiple write cycles.




Manage Videos Easily with the Free BlackVue Viewer

The BlackVue Viewer(WINDOWS/MAC) is free to download and use.
It lets you easily change your BlackVue configuration settings and review recorded videos.
It displays videos chronologically and by type (Normal/Event/Parking) to let you quickly identify and archive important footage.
You can also export video segments, remove audio or export screen captures.




External GPS Receiver (Optional)

The External GPS Receiver (G-1E) adds speed and location data to your videos.
 speed data–in Km/h or Mph–will be overlaid in the video (can be turned off in the settings).
Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.

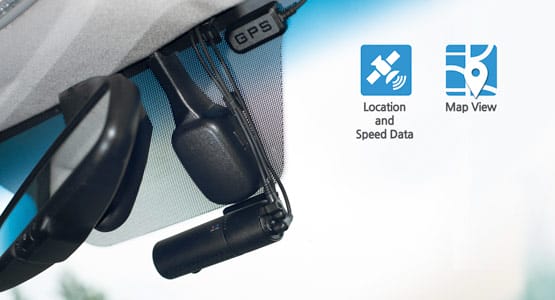

BlackVue External GPS (G-1E) installed in car.


Refer to the DR590-2CH IR Product Page (link opens in new tab) for more detailed info.

Weight1 kg
Dimensions21 × 15 × 14 cm

32GB, 64GB, 128GB, 256GB


External GPS included, External GPS not included

  • Front Camera
  • Interior IR Camera
  • Interior camera connection cable (1.5m)
  • microSD Card
  • Power cord
  • External GPS (Optional)
  • microSD Card adapter
  • Quick start guide
  • Cable clips (5EA)


Model Name DR590-2CH IRLED IndicatorsFront: Front Security, REC (Red), GPS (Blue)
Rear: Rear Security LED
Color/Size/WeightFront: Black / Width 111.8 mm x Height 34 mm / 63 g
Rear: Black / Width 67.4 mm x Height 25 mm / 21 g
Wavelength of Interior
camera IR light
940 nm (2 Infrared (IR) LEDs)
Memory microSD Card (32 GB/64 GB/128 GB/256 GB)ButtonShort press: Mic on/off
Press and hold: Format microSD card
Recording ModesNormal Recording, Event Recording (when impact is detected in normal and parking mode) and Parking recording (when motion is detected)
* For parking mode recording, a Parking Mode Battery Pack (Power Magic Battery Pack) or a Parking Mode Hardwiring Kit (Power Magic Pro) is required.
Sensor 3-Axis Acceleration Sensor
Backup BatteryBuilt-in super capacitor
CameraFront: STARVIS™ CMOS Sensor (Approx. 2.1 megapixels)
Rear: CMOS Sensor (Approx. 2 megapixels)
Input PowerDC 12V – 24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)
Viewing AngleFront: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 140°, Horizontal 115°, Vertical 60°
Power ConsumptionAvg. 290mA (3.48W at 12V, when Wi-Fi is off and no external GPS receiver is connected)
Avg. 310mA (3.84W at 12V, when Wi-Fi is on and an external GPS receiver is connected)
* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
Resolution/Frame Rate Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
Full HD (1920×1080) @ 30 fps – HD (1280×720) @ 30 fps
HD (1280×720) @ 30 fps – HD (1280×720) @ 30 fps
Operation Temperature-20 °C – 70 °C (-4 °F – 158 °F )
Image Quality Highest/High/NormalStorage Temperature-20 °C – 80 °C (-4 °F – 176 °F)
Video Compression ModeMP4High Temp. Cut-Off Approx. 70 °C (158 °F )
GPS External (Optional)Certifications FCC, CE, RoHS
MicrophoneBuilt-inSoftwareBlackVue Viewer
* Windows XP or higher and Mac Yosemite OS X (10.10) or higher
Speaker (Voice Guidance)Built-inOther Features Adaptive Format Free File Management System

Recording time

ModelMemory CapacityImage QualityResolution
DR590W-2CH  Full HD @30fps
+ Full HD @30fps
Full HD @30fps
+ HD @30fps
HD @30fps
+ HD @30fps
16GBHighest1 HR 25 MIN1 HR 35 MIN2 HR
High1 HR 50 MIN2 HR2 HR 40 MIN
Normal2 HR 20 MIN2 HR 40 MIN4 HR
32GBHighest2 HR 50 MIN3 HR 10 MIN4 HR
High3 HR 40 MIN4 HR5 HR 20 MIN
Normal4 HR 40 MIN5 HR 20 MIN8 HR
64GBHighest5 HR 40 MIN6 HR 20 MIN8 HR
High7 HR 20 MIN8 HR10 HR 40 MIN
Normal9 HR 20 MIN10 HR 40 MIN16 HR
128GBHighest11 HR 20 MIN12 HR 40 MIN16 HR
High14 HR 40 MIN16 HR21 HR 20 MIN
Normal18 HR 40 MIN21 HR 20 MIN32 HR
Bitrate (Mbps)
Front + Rear
Highest12 + 1012 + 88 + 8
High10 + 810 + 66 + 6
Normal8 + 68 + 44 + 4
