DR590W-2CH IR

USD307.99USD450.99

0 out of 5

Dual Full HD Wi-Fi Dash​cam with Sony’s STARVIS™ image sensor
and Interior Infrared Camera.

Clear

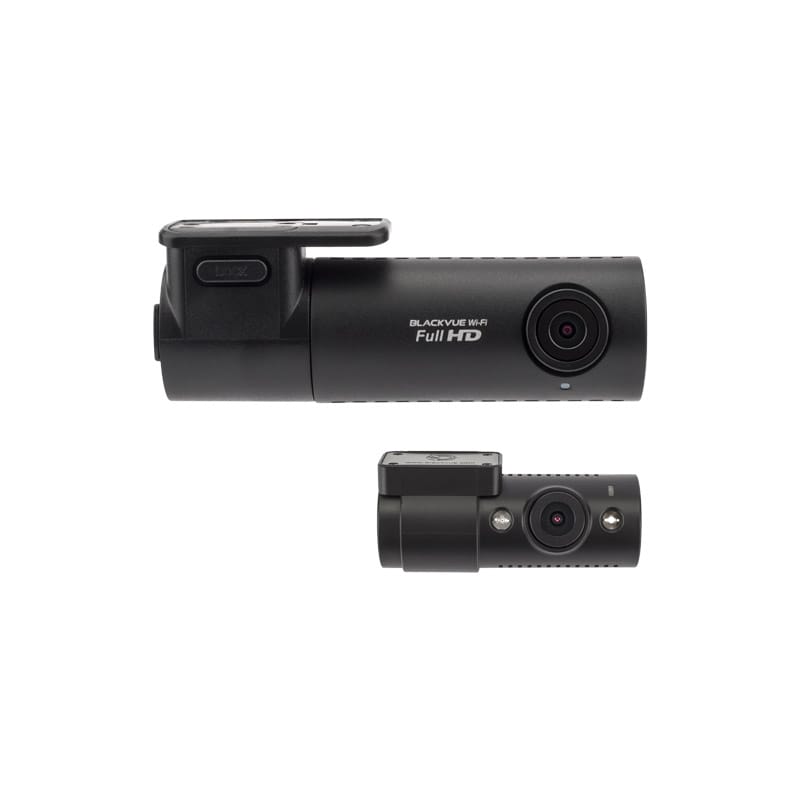

Front and Interior Full HD video and Wi-Fi connectivity

The DR590W-2CH IR records Full HD 1080p videos of the front and interior of your car at 30 frames per second, in a 139-degree wide view angle (interior 140 degrees).
With the front camera’s Sony STARVIS™ imaging sensor, you get awesome image clarity day and night.
The interior infrared camera records clear videos even in complete darkness thanks to its discreet infrared illumination LEDs.

Built-in Wi-Fi

Connect with the BlackVue App for iOS/Android to adjust settings and download videos to your phone.

blackvue-dr590w-2ch-ir-dash-cam-starvis-wi-fi-interior-camera-infrared

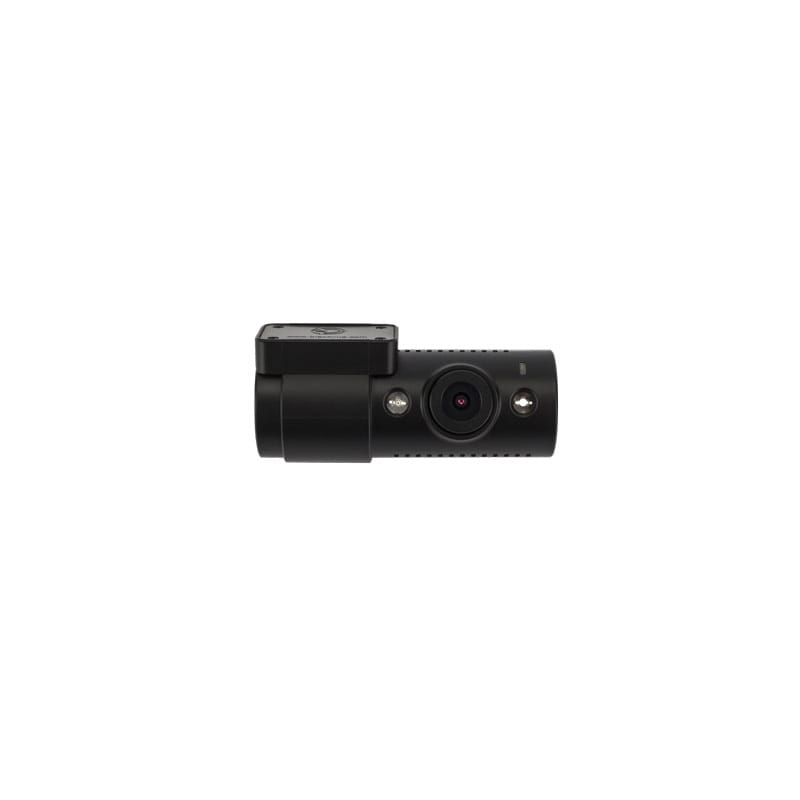

Interior Infrared Camera

The Interior IR Full HD camera is equipped with an illumination sensor and infrared LED which light is barely visible to the eye.
These allow the capture of clear images in pitch black lighting conditions.



Set up (easily) and forget

BlackVue dash​cams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape. This way, the dash​cam is invisible to the driver’s eye. The interior camera faces the driver, ideally above the rear view mirror and connects to the front unit with the included video cable.
Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on.
Once set, you can forget about it, knowing it will reliably record your drive.





Parking Mode Support

The DR590W-2CH IR is compatible with Parking Mode. In Parking Mode, your dash​cam monitors your parked vehicle, recording videos when it detects movement or impact. It also includes the few seconds before the triggering event, thanks to buffered recording. You will need a Power Magic Pro or Power Magic Battery Pack to enable this feature. Find more info about Parking Mode here (link opens in new tab).





Secure Memory Management

Loop Recording: your dash​cam records over the oldest video files first when the microSD card is full, in a seamless loop.

Adaptive Format-Free Technology: your BlackVue saves and organizes files on the microSD card in a highly efficient way.
It reduces the need for formatting the card and prevents file corruption even after multiple write cycles.

blackvue-micro-sd-card-adaptive-format-free-loop-recording





Manage Videos Easily with the BlackVue App and Viewer

The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dash​cam to retrieve videos on the spot.



External GPS Receiver (Optional)

The External GPS Receiver (G-1E) adds speed and location data to your videos.
Speed:
 speed data–in Km/h or Mph–will be overlaid in the video (can be turned off in the settings).
Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.
BlackVue External GPS (G-1E) installed in car.



Refer to the DR590W-2CH IR Product Page (link opens in new tab) for more detailed info.

Weight 1 kg
Dimensions 21 × 15 × 14 cm
MEMORY CAPACITY

16GB, 32GB, 64GB, 128GB

GPS RECEIVER

External GPS included, External GPS not included

blackvue-dr590w-2ch-ir-dash-cam-parts
  • Front Camera
  • Interior IR Camera
  • Interior camera connection cable
  • microSD Card
  • Power cord
  • External GPS (Optional)
  • microSD Card adapter
  • Quick start guide
  • Cable clips (5EA)

Specifications

Model Name  DR590W-2CH IR LED Indicators Front: Front Security, REC (Red), GPS (Blue), Wi-Fi (White)
Rear: Rear Security LED
Color/Size/Weight Front: Black / Width 111.8 mm x Height 34 mm / 64 g
Rear: Black / Width 67.4 mm x Height 25 mm / 21 g
Wavelength of Interior
camera IR light
940 nm (2 Infrared (IR) LEDs)
Memory  microSD Card (16 GB/32 GB/64 GB/128 GB) Button Short press: Wi-Fi on/off
Press and hold: Format microSD card
Recording Modes Normal Recording, Event Recording (when impact is detected in normal and parking mode) and Parking recording (when motion is detected)
* For parking mode recording, a Parking Mode Battery Pack (Power Magic Battery Pack) or a Parking Mode Hardwiring Kit (Power Magic Pro) is required.
Sensor  3-Axis Acceleration Sensor
Backup Battery Built-in super capacitor
Camera Front: STARVIS™ CMOS Sensor (Approx. 2.1 megapixels)
Rear: CMOS Sensor (Approx. 2 megapixels)
Input Power DC 12V – 24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)
Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 140°, Horizontal 115°, Vertical 60°
Power Consumption Avg. 300mA (3.60W at 12V, when Wi-Fi is off and no external GPS receiver is connected)
Avg. 350mA (4.20W at 12V, when Wi-Fi is on and an external GPS receiver is connected)* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
Resolution/Frame Rate
Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
Full HD (1920×1080) @ 30 fps – HD (1280×720) @ 30 fps
HD (1280×720) @ 30 fps – HD (1280×720) @ 30 fps
Operation Temperature -20 °C – 70 °C (-4 °F – 158 °F)
Image Quality  Highest/High/Normal Storage Temperature -20 °C – 80 °C (-4 °F – 176 °F)
Video Compression Mode MP4 High Temp. Cut-Off  Approx. 70 °C (158 °F)
Wi-Fi  Built-in (802.11n (2.4 − 2.4835 GHz)) Certifications  FCC, CE, RoHS, Telec, WEEE, IC
GPS  External (Optional) Software BlackVue Viewer
* Windows XP or higher and Mac Yosemite OS X (10.10) or higher
Microphone Built-in Application BlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher)
Speaker (Voice Guidance) Built-in Other Features  Adaptive Format Free File Management System


Recording time

Model Memory Capacity Image Quality Resolution
DR590W-2CH     Full HD @30fps
+ Full HD @30fps
Full HD @30fps
+ HD @30fps
HD @30fps
+ HD @30fps
16GB Highest 1 HR 25 MIN 1 HR 35 MIN 2 HR
High 1 HR 50 MIN 2 HR 2 HR 40 MIN
Normal 2 HR 20 MIN 2 HR 40 MIN 4 HR
32GB Highest 2 HR 50 MIN 3 HR 10 MIN 4 HR
High 3 HR 40 MIN 4 HR 5 HR 20 MIN
Normal 4 HR 40 MIN 5 HR 20 MIN 8 HR
64GB Highest 5 HR 40 MIN 6 HR 20 MIN 8 HR
High 7 HR 20 MIN 8 HR 10 HR 40 MIN
Normal 9 HR 20 MIN 10 HR 40 MIN 16 HR
128GB Highest 11 HR 20 MIN 12 HR 40 MIN 16 HR
High 14 HR 40 MIN 16 HR 21 HR 20 MIN
Normal 18 HR 40 MIN 21 HR 20 MIN 32 HR
Bitrate (Mbps)
Front + Rear
Highest 12 + 10 12 + 8 8 + 8
High 10 + 8 10 + 6 6 + 6
Normal 8 + 6 8 + 4 4 + 4
