DR770X-2CH IR

DR770X-2CH IR

USD348.99 – USD430.99

The front camera of DR770X-2CH IR records the road ahead in Full HD, while the driver-facing IR (infrared) camera captures every detail of the interior, even in pitch black lighting conditions.

SKU: KRHQD-77XIR- Categories Cloud Dashcam, Dashcams, DR770X, Taxi Dashcam Tags: 2 Cameras (2CH), 60FPS, Built-in GPS, Cloud dashcam, Full HD, Full HD Front Cam, Infrared (IR), Infrared Interior (Taxi), IR Camera, Sony STARVIS Image Sensor, Wi-Fi

Warranty

2 years (Dash Cam)

Memory Capacity

Clear

Parking Mode Add-on

*Fuse Taps Type

KRHQA-FTA-3A

LTE Connectivity Module

Tamper-Proof Case
*Memory Capacity

Reset options

Quantity

Full HD Cloud Dashcams

Front / Rear

via Wi-Fi/
USB module

Seamless
Pairing

Native Parking Mode

Let your BLACKVUE watch over your vehicle 24/7

DR770X Series

Package Info

Weight

0.85 kg (1.87Ibs)

Dimensions

123(L) x 197(W) x 103(H) mm
4.8(L) x 7.8(W) x 4.1(H) inch

MEMORY CAPACITY

64GB, 128GB, 256GB, 512GB

What’s Included

Front Camera

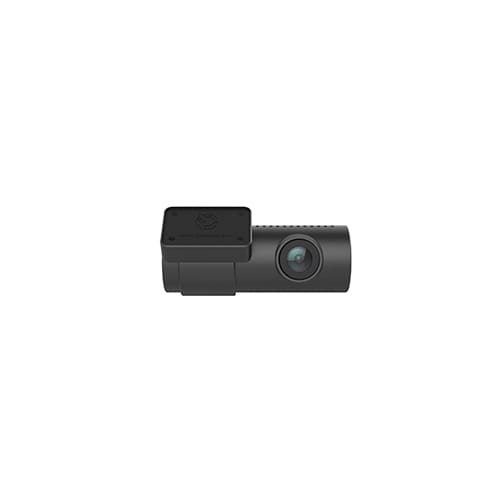

Infrared Interior / Rear Camera

Hardwiring Power Cable

Rear Camera Connection Cable

Cigarette Lighter Power Cable

MicroSD Card

MicroSD Card Reader

Double-sided Tape
for the camera mounting bracket

Double-sided Tape
for the rear camera mounting bracket

Quick Start Guide

Pry Tool

Cable Clips (8EA)

Technical Specs

Specifications
Model Name	DR770X-2CH IR
Channel	2CH
Highlights	Full HD (Front + Interior IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
Product Dimensions	Front: Black / Width 118.5 mm x Height 36 mm / 95 g Interior: Black / Width 67.4 mm x Height 25 mm / 27 g
Rear Camera Connection	Coaxial cable
Memory Support	microSD card up to 512GB
Recording Modes	Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included)
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Viewing Angle	Front: Diagonal 139°, Horizontal 116°, Vertical 61° Interior: Diagonal 180°, Horizonal 150°, Vertical 93°
Resolution Frame Rate	Front: Full HD (1920 x 1080) @ 60 fps Interior: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming.
Video Codec	H.264 (AVC)
Image Quality and Bitrate Front/Rear	Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 50)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11 b.g.n)
Cloud Compatible	YES

Specifications
GPS	Built-in (Dual Band : GPS, GLONASS)
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor
LED Indicators	Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Interior: Rear Security LED
Rear Camera IR Illumination	940 nm (2 Infrared (IR) LEDs)
Button	Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature	-20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature	-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off	Approx. 80 °C (176 °F)
Backup Battery	Built-in supercapacitor
Input Power	DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour	Normal Mode (GPS On/2CH): Avg. 380mA / 12V Parking Mode (GPS Off/2CH): Avg. 300mA / 12V * Approx. 40mA increase in current when IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.
Certifications	Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Interior: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Adaptive Format-Free File Management System
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	External (optional)

Recording Time

Model	Memory Capacity	Image Quality	Resolution
DR970X-2CH Plus/ DR970X-2CH LTE Plus/ DR970X Box-2CH Plus			4K UHD @30fps + Full HD @30fps
	64GB	Extreme (H.265)	1 HR 50 MIN
		Extreme (H.264)	2 HR 35 MIN
		Highest	3 HR 40 MIN
		High	6 HR 05 MIN
		Normal	8 HR 15 MIN
	128GB	Extreme (H.265)	3 HR 45 MIN
		Extreme (H.264)	5 HR 15 MIN
		Highest	7 HR 20 MIN
		High	12 HR 15 MIN
		Normal	16 HR 40 MIN
	256GB	Extreme (H.265)	7 HR 40 MIN
		Extreme (H.264)	10 HR 35 MIN
		Highest	14 HR 50 MIN
		High	24 HR 35 MIN
		Normal	33 HR 25 MIN
	512GB	Extreme (H.265)	15 HR 20 MIN
		Extreme (H.264)	21 HR 15 MIN
		Highest	29 HR 40 MIN
		High	49 HR 15 MIN
		Normal	66 HR 50 MIN
	Bitrate (Mbps) Front + Rear	Extreme (H.265)	60 + 10
		Extreme (H.264)	40 + 10
		Highest	25 + 10
		High	12 + 8
		Normal	8 + 6
